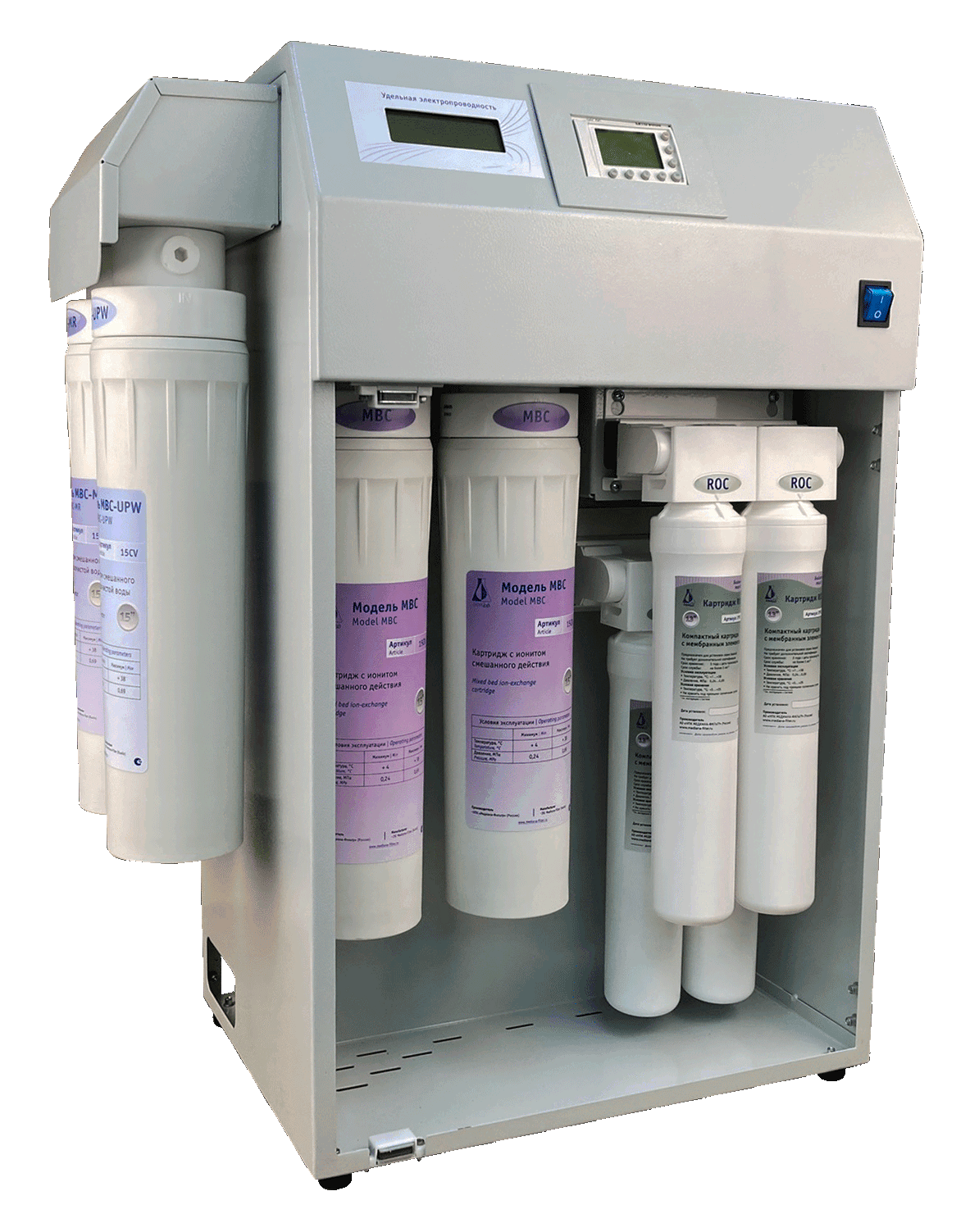

Aqualab AL-4 Plus
Item ID: 27M7
Model: Аквалаб AL-4 Plus
Average Capacity: 20-32 L/h
Nominal capacity: 20 L/h
Storage volume: 5 L
Application:
generation of purity level 1 water under Russia’s National Standard GOST R 52501-2005 "Water for laboratory analysis", type I water under ASTM D1193-06(2011), ISO 3696, CLRW water under CLSI, and water under FS.22.0020.18 "Purified water", FS.22.0019.18"Water for injection" and other standards for ultrapure water.
Source water must be a drinking water underSanitary Rules and Regulations SanPiN 1.2.3685-21 with additional requirements.

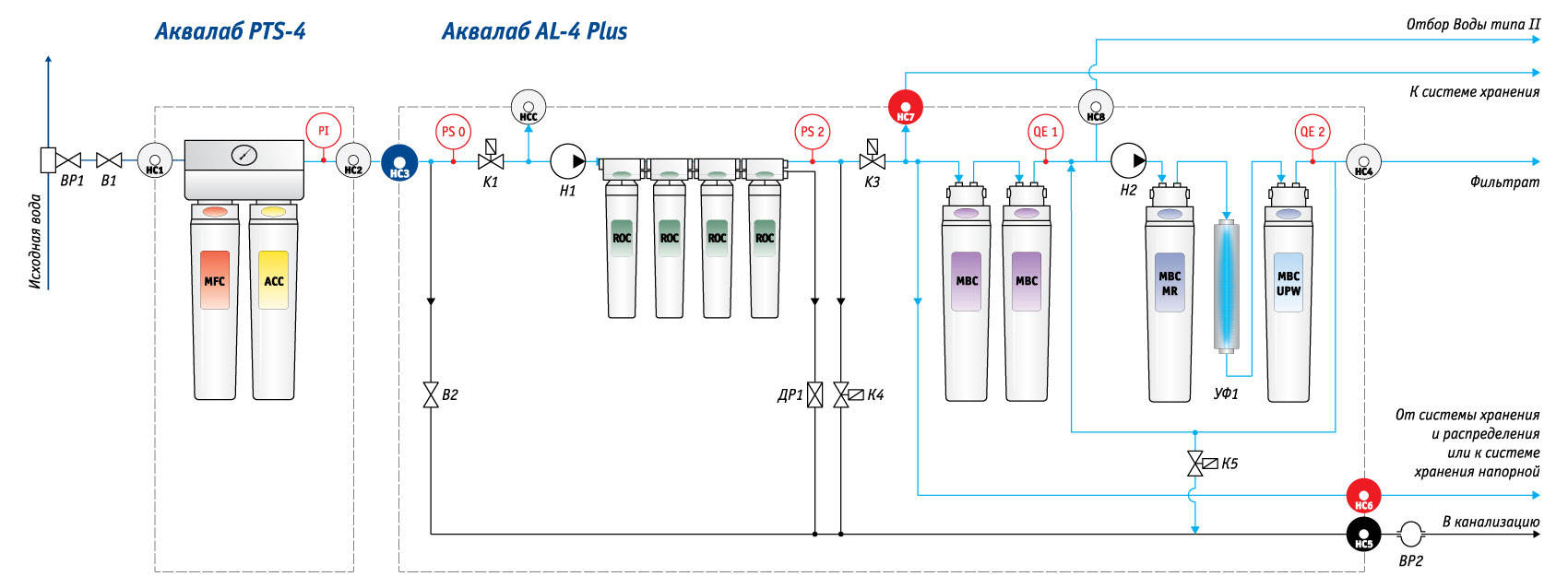

Produce water of required quality through following purification stages:
- Removal of mechanical particles, organics and free chlorine;
- Demineralization by reverse osmosis technology;
- Deep demineralization by ion exchange resins;
- Polishing by ion exchange resins of the nuclear grade;
- Disinfection and oxidation of organics;
- Polishing and removal of organics and minerals.
Partially demineralized water can be produced by the system (by taking it after ROC cartridges).
Distilled water and Type 2 water can be produced by the system.
The high purity of filtrate is ensured by multi-passing of the treated water through the last three treatment stages (closed loop circulation).
At the point of use, the water undergoes an additional stage of sterilizing filtration with a 0.22μm rating.
The system includes a separate pre-treatment module Aqualab PTS-4.
Total capacity: up to 2 l/min*
Source water temperature: from +5 to +38 °C
Source water pressure: 1.5-3 bar (for automatic supply)
Electrical connection: 220 V / 50 Hz
Power intake: 65 W
Overall dimensions (HxWxD) – 497x245x380 mm
Dry weight – no more than 8 kg
* When the water supply in the built-in storage tank is exhausted, the system needs to be fed with source water (in manual or automatic mode).
