Aqualab D5 (Base Double)
Item ID: 2VV3
Model: Aqualab D5 (Base Double)
Общая производительность: 5-8 L/H
Nominal capacity: 5 L/h
Application:
Production of Type II water according to ASTM D1193-06(2011), Grade 2 and 3 water according to ISO 3696, CLRW water according to CLSI, and water meeting distilled water standards.
Feedwater: potable water with TDS up to 1000 mg/L.

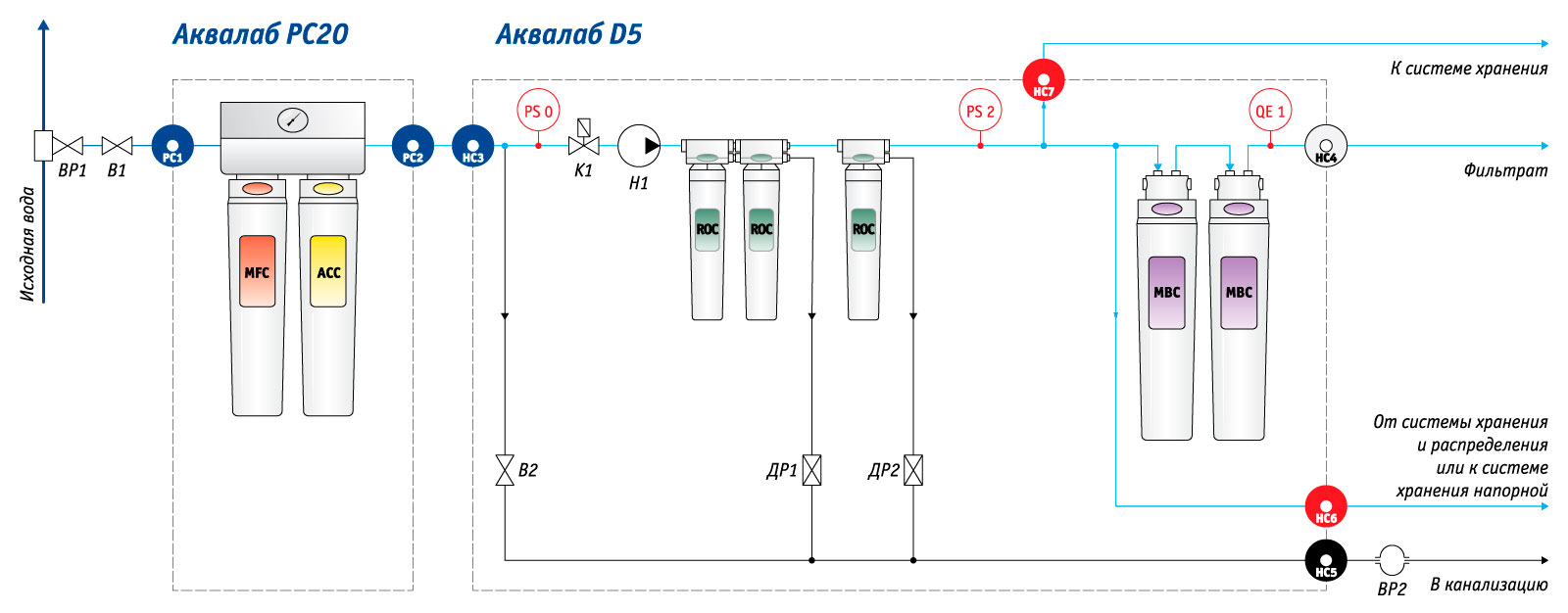

The system operation is based on the following technological stages:
- Pretreatment using MFC and ACC cartridges;

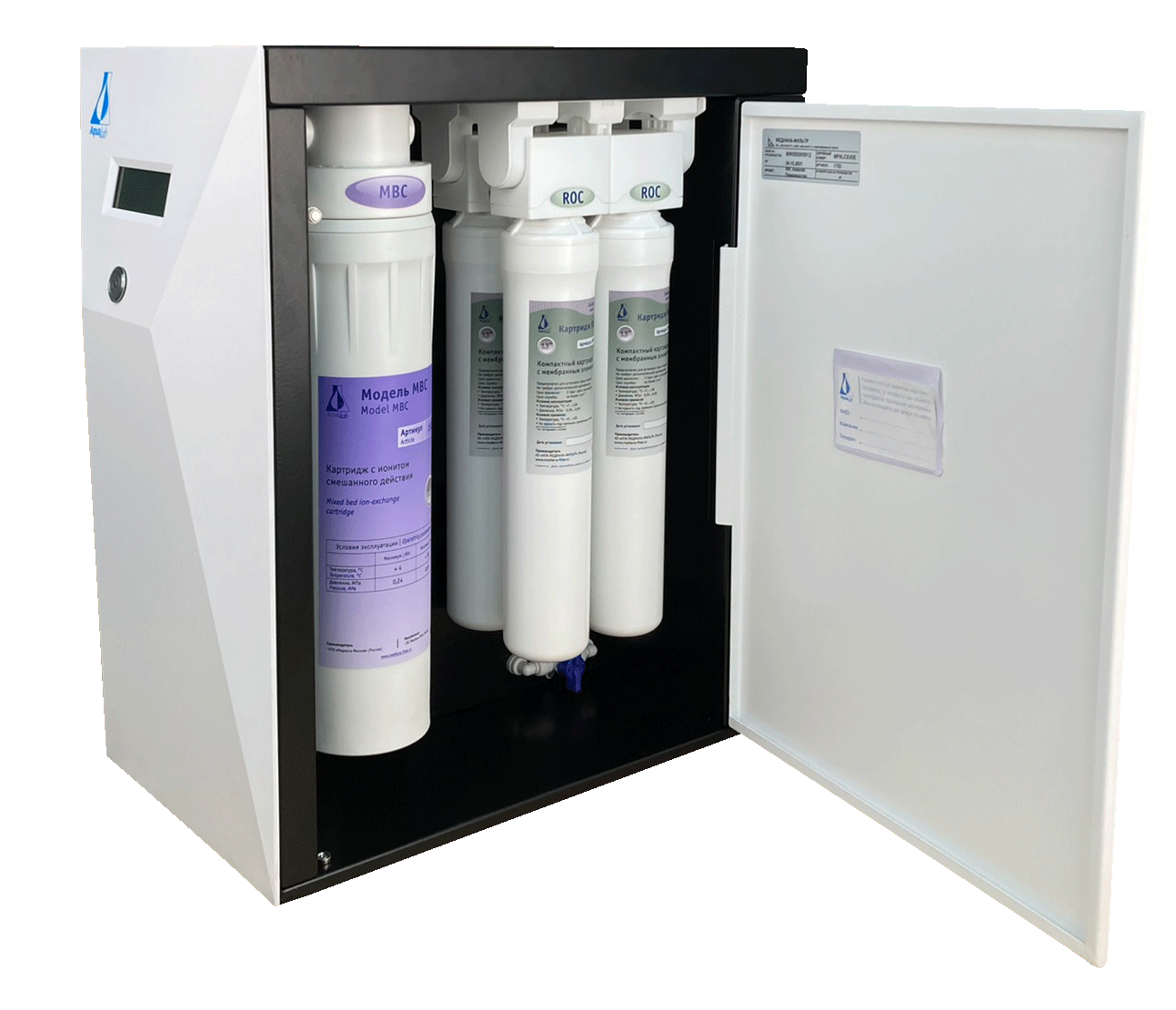

- Sequential two-stage reverse osmosis demineralization using ROC cartridges;
- Ion exchange demineralization using MBC cartridges.
Partially demineralized water can be dispensed from the unit (after ROC cartridges).

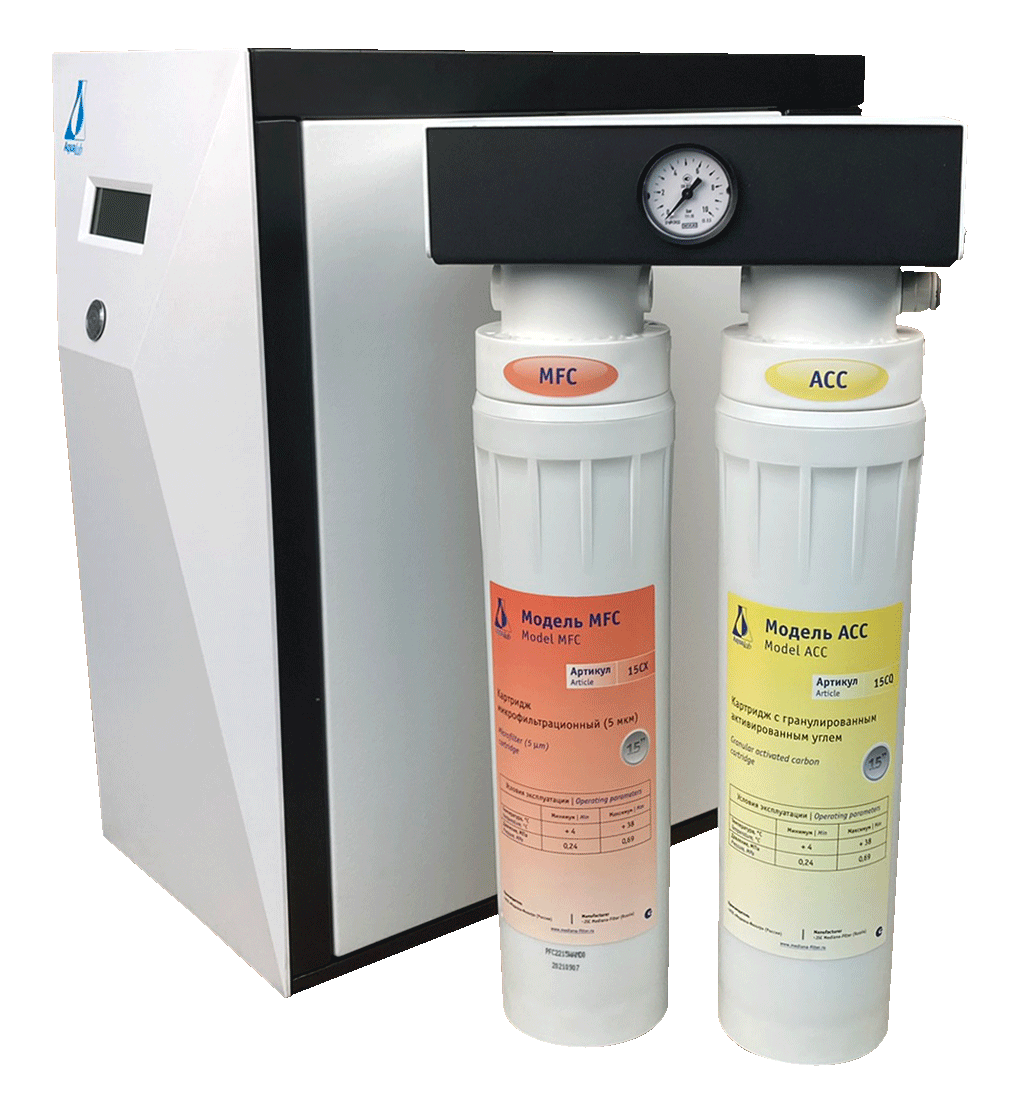

The system includes a remote Aqualab PC20 pretreatment unit.
Total capacity: 5–8 L/h
Nominal capacity: 5 L/h
Feedwater temperature: +5 to +38 °C
Feedwater pressure: 1.5–6 bar
Electrical connection: 220 V / 50 Hz
Power consumption: 40 W
Main unit overall dimensions (HxWxD): 497x245x471 mm
Main unit dry weight: max. 22 kg
Pretreatment unit dimensions (HxWxD): 485x278x155 mm
Pretreatment unit dry weight: max. 7,3 kg
