Technology concepts of the equipment connection
Every Aqualab system is an independent unit that does not require any extra equipment to operate. Nevertheless, the use of additional equipment helps to prolong the service life of cartridges and the unit in general and makes the system more user-friendly.
The method of connecting the equipment as proposed below guarantees a long life and stable operation of the water treatment system.
Each element of the treatment system should have a purpose. Only the necessary elements should be used in the water treatment equipment.
| Stage | Equipment | Purpose | Note | Photo |
|---|---|---|---|---|

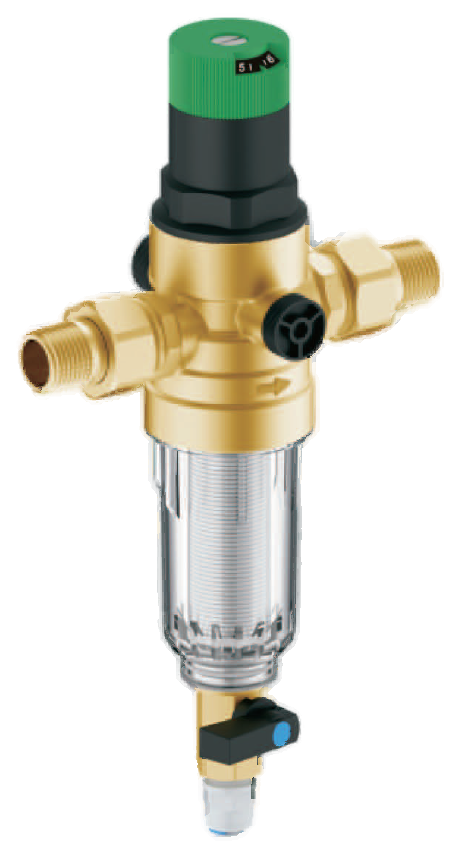

| Coarse Cleaning | Main Line Coarse Mesh Filter | Removal of large particles. |  |
|

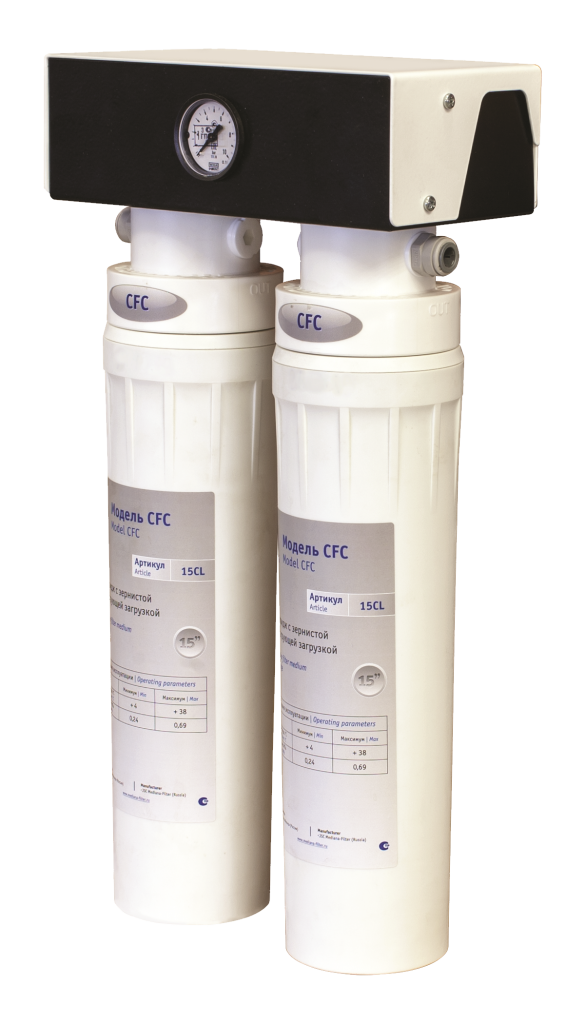

| Deironing | Aquaton MLS MINI Aqualab PTS-6 Aqualab PTS-7 Aqualab PC24 |
Removal of compounds containing iron. |  |
|

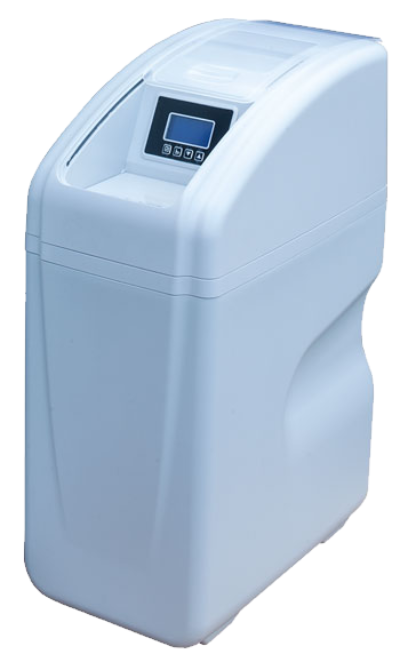

| Softening | Aquaton SFS MINI | Removal of hardness ions. |  |
|

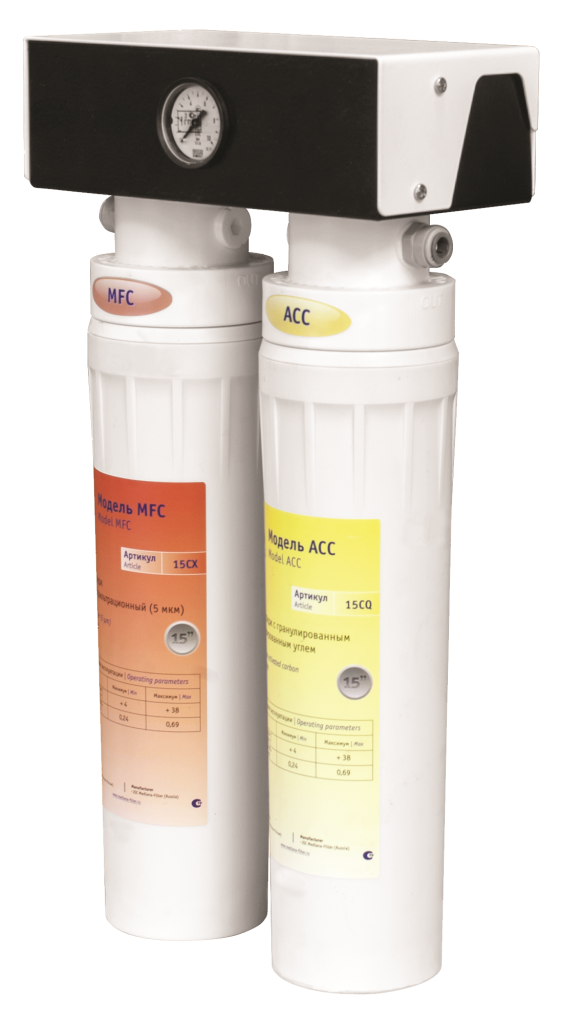

| Filtration and Sorption | Aqualab PTS-4 Aqualab PC20 |
Separation of suspended solid particles larger than 5 µm, removal of organics, and free chlorine. | Always included in the main treatment unit. |  |

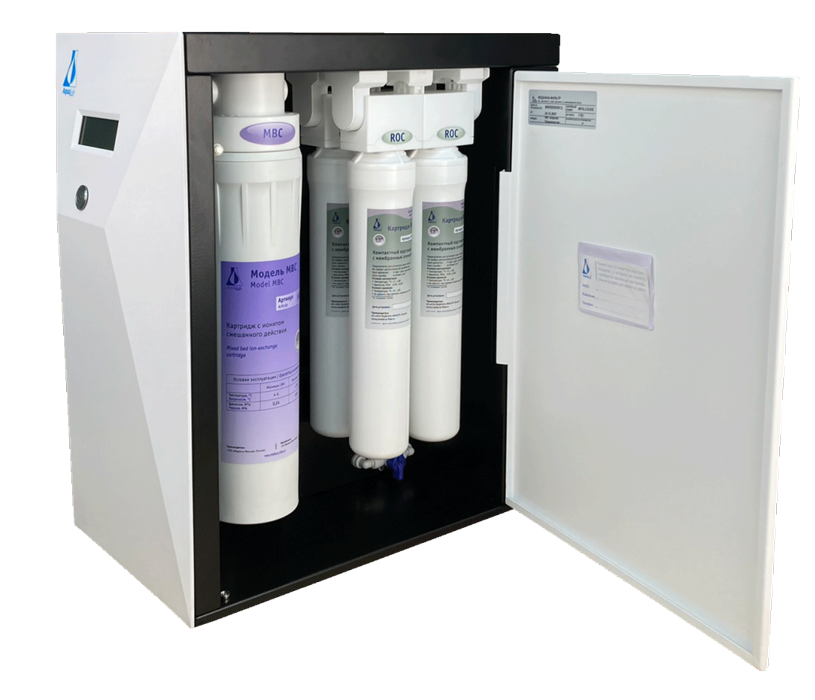

| Desalination | Aqualab AL Aqualab AL HF Aqualab AL Double Aqualab AL UF Aqualab Pure Aqualab Double Aqualab Base Aqualab TWDS Aqualab TW |
Production of distilled water, type 3 and type 2 water, reverse osmosis permeates |  |
|

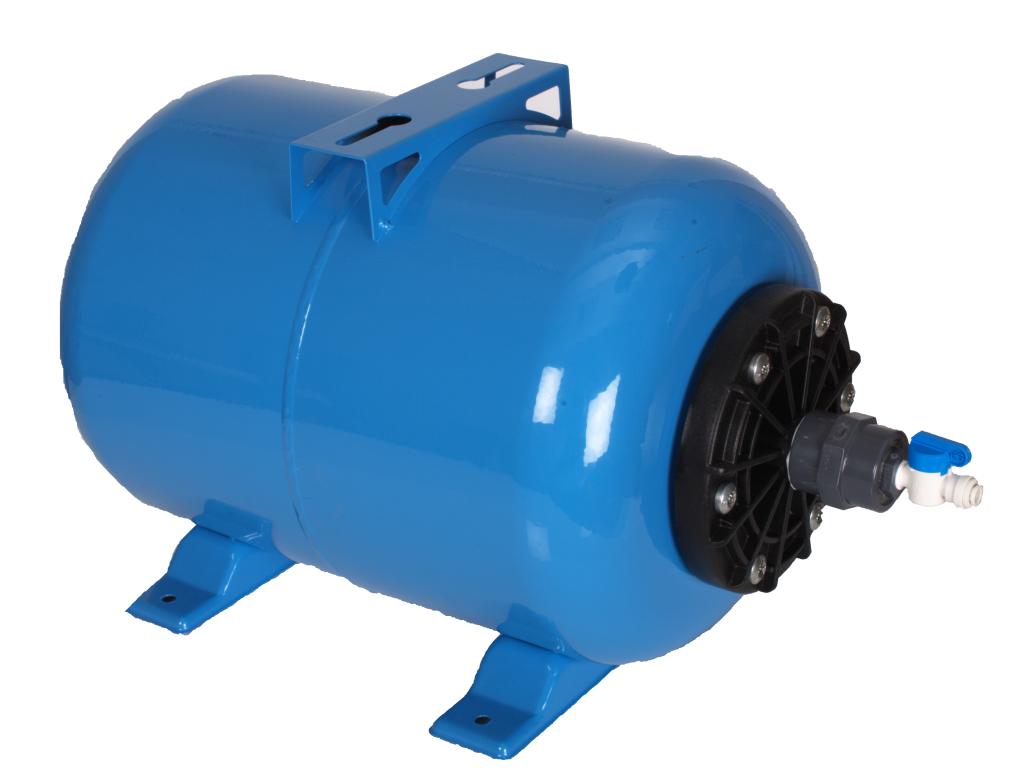

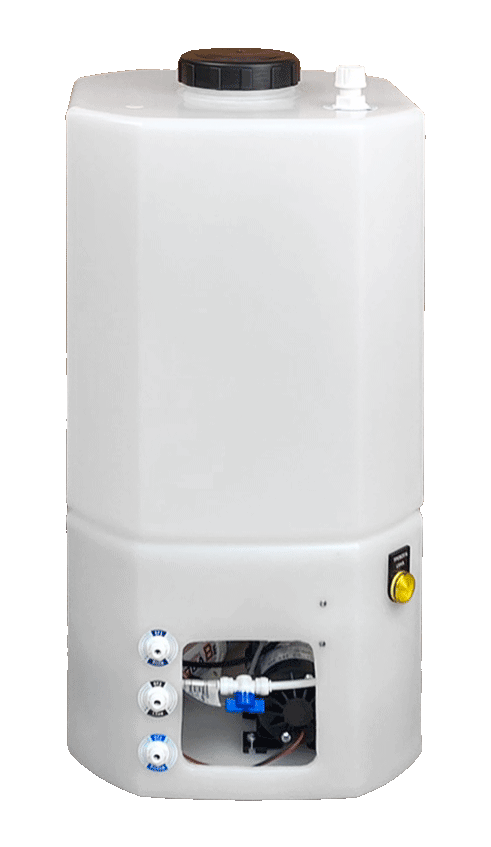

| Storage Systems | Aqualab ST Simple+ Aqualab ST Simple++ Aqualab ST Standard+ Aqualab ST Standard++ |
Storage and distribution of pressurized water for a user | Reverse osmosis permeate storage systems are recommended to use downstream the ROC cartridges |  |

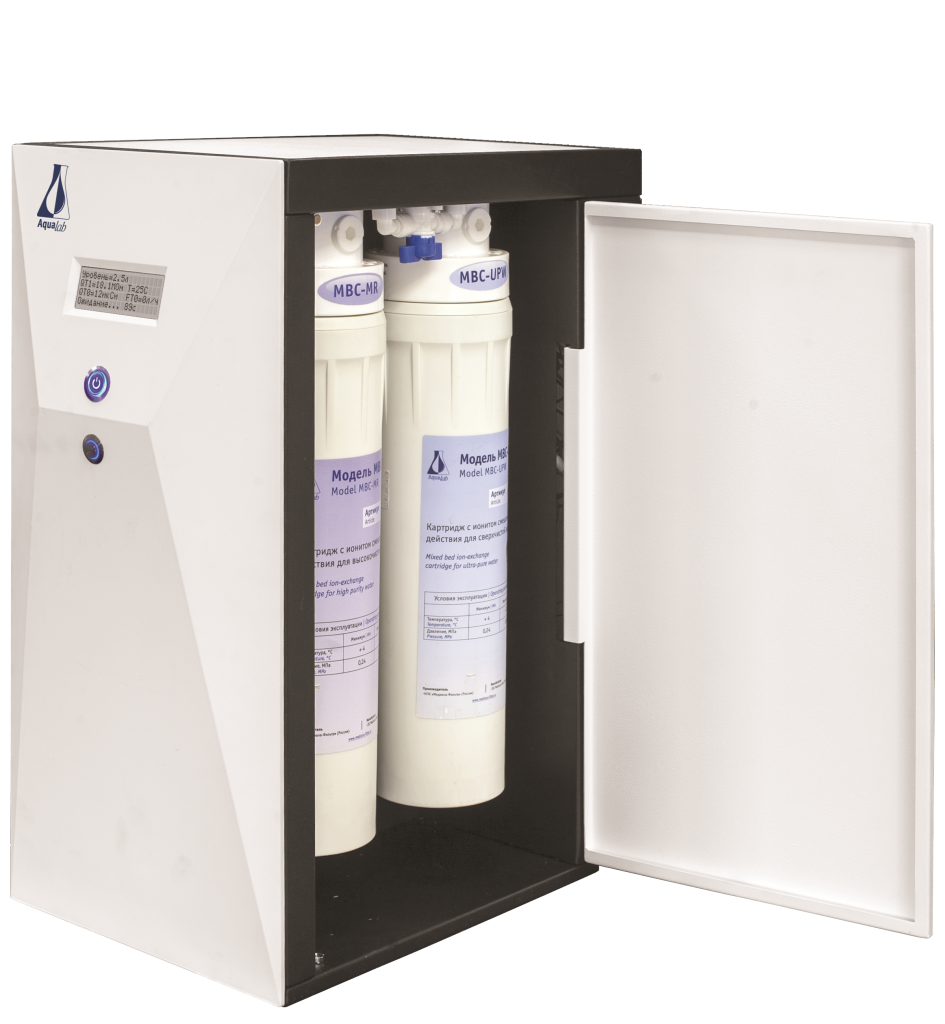

| Deep Desalination | Aqualab AL Plus Aqualab AL EDI Aqualab Supreme Aqualab WDS |
Production of type 1 water. |  |
|
| Storage systems | Аквалаб ST Simple Аквалаб ST Standard | Storage of water without the ability to distribute under pressure | Recommended for connection to consumers equipped with self-priming filtrate withdrawal devices |  |

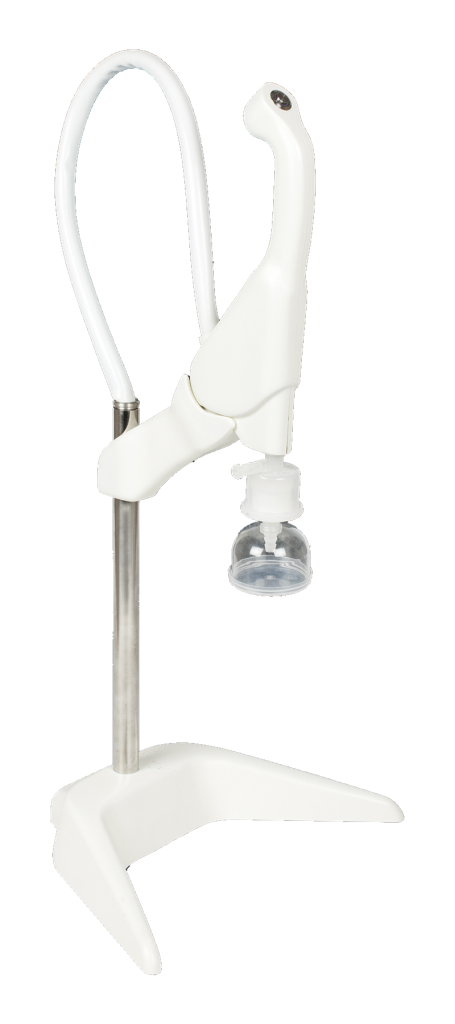

| Distribution systems | Aqualab WD1 Aqualab WD2 |
Filtrate withdrawal at points of consumption | Several Aqualab WD1 can be used in one system for taking water of different purity. The WD2 is applicable for Aqualab S18 and Aqualab S18+ units |  |
