Quick-disconnect connector working sequence
Besides the equipment with standard screwed joint, the Aqualab units include hydraulic elements with collet “quick-connect” connectors.
These elements are connected to each other with a flexible tube of appropriate diameter. The following sizes of flexible tubes are used in the Aqualab units and as piping of extra equipment:
| Size | Outer diameter | Inner diameter |
|---|---|---|
| 1/4″ | 6.4 mm | 4.3 mm |
| 3/8″ | 9.5 mm | 6.4 mm |
| 1/2″ | 12.7 mm | 9.5 mm |
Connect the tube to the fitting.
Push the tube into the fitting connector till the end.
Push the tube into the fitting connector till the end.
Test the connection.
Pull the tube in the direction off the connector. Always test connections before using!
Pull the tube in the direction off the connector. Always test connections before using!
Taking the tube out of the fitting.
Make sure the line is depressurized. Press the collet ring to the fitting and take the tube out without changing its position.
Make sure the line is depressurized. Press the collet ring to the fitting and take the tube out without changing its position.

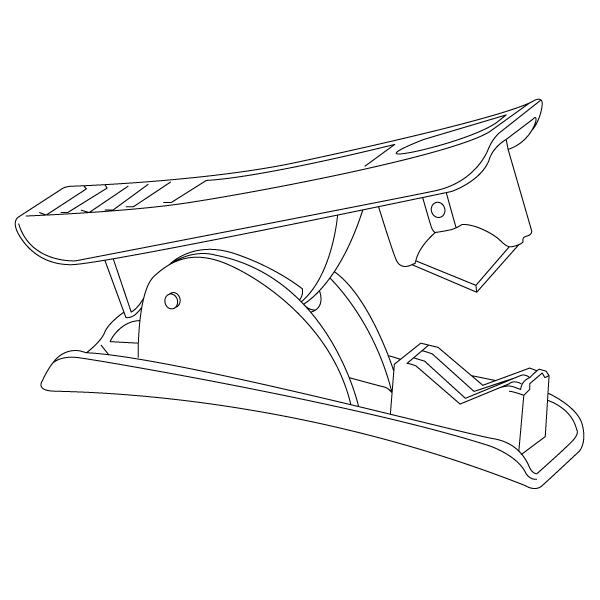

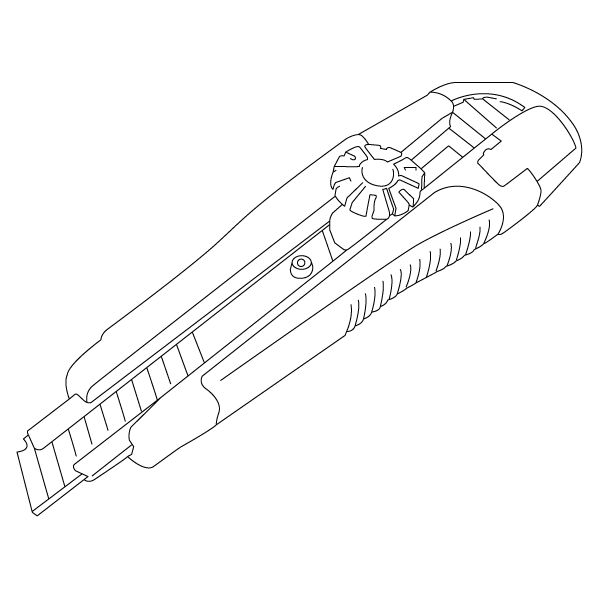

Use a sharp office knife or a special tool (tube cutter) to cut the flexible tubes.

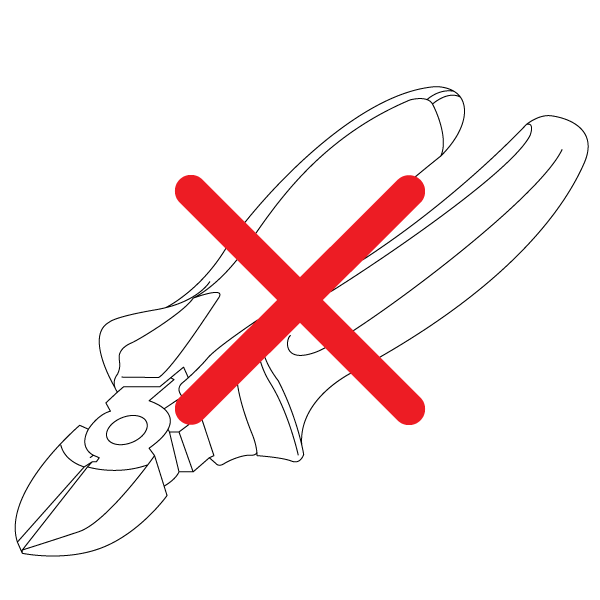

Do not use nipper pliers or scissors to cut the tubes. They make irregular fractures on the tubes that can cause leaks.
Component parts order codes
| Tube cutter for pipes up to 12 mm | 0OJJ |
| Tube cutter for pipes up to 22 mm | 0OK4 |
