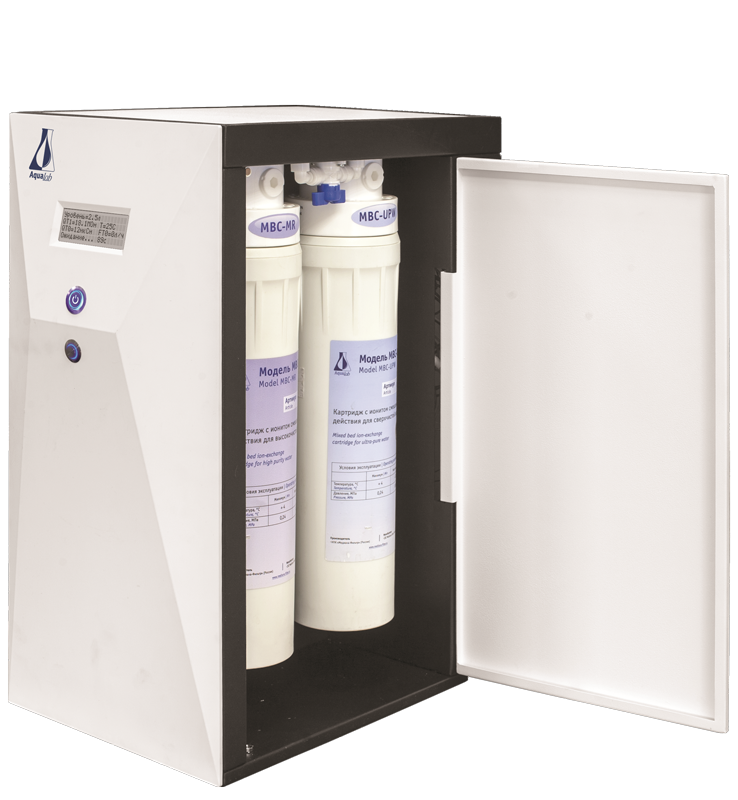

Aqualab S18 (Supreme)
Item ID: 2VVA
Model: Aqualab S18 (Supreme)
Nominal capacity: 120 L/h
Application:
Production of Type I water according to ASTM D1193-06(2011), Grade 1 water according to ISO 3696:1987, CLRW water according to CLSI, as well as water complying with the requirements of other standards for ultrapure water.
Feedwater: distilled water or better

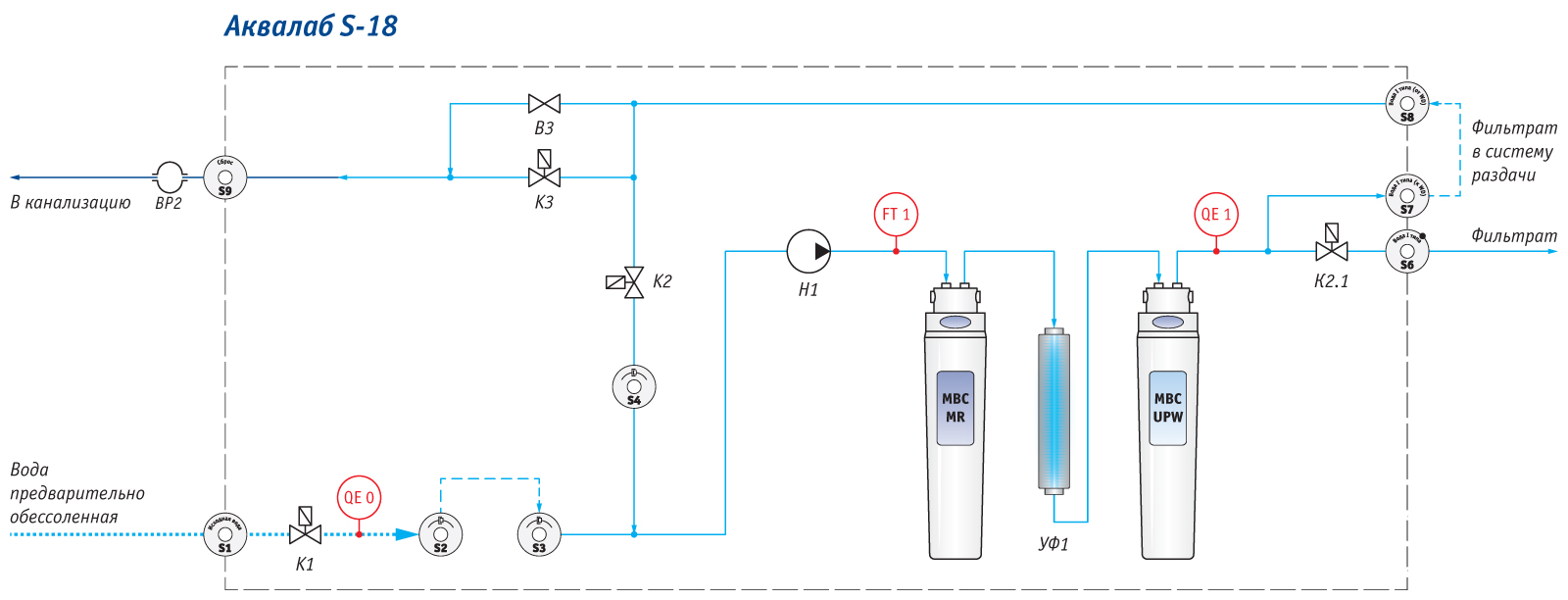

The system operation is based on the following technological stages:
- Final demineralization using nuclear-grade ion exchange resins;
- Disinfection and oxidation of organic substances;
- Polishing and removal of trace amounts of organic compounds and mineral impurities.
High filtrate quality is ensured by multiple passes of the treated water through all purification stages (closed-loop circulation).
At the point of use, the water additionally undergoes a 0.22 µm-rated sterilizing filtration stage.
Total capacity: up to 2 L/min*
Feedwater temperature: +5 to +38 °C
Feedwater pressure: 1.5–3 bar
Electrical connection: 220 V / 50 Hz
Power consumption: up to 65 W
Dimensions (HxWxD): 497x245x462 mm
Dry weight: max. 20 kg
*Capacity depends on feedwater quality. The feedwater supply system must ensure a water flow rate of 1–2 L/min.
